High Power Intelligent Programmable DC Counter Power Supply with RS485 Communicating Rectifier

Functional Application

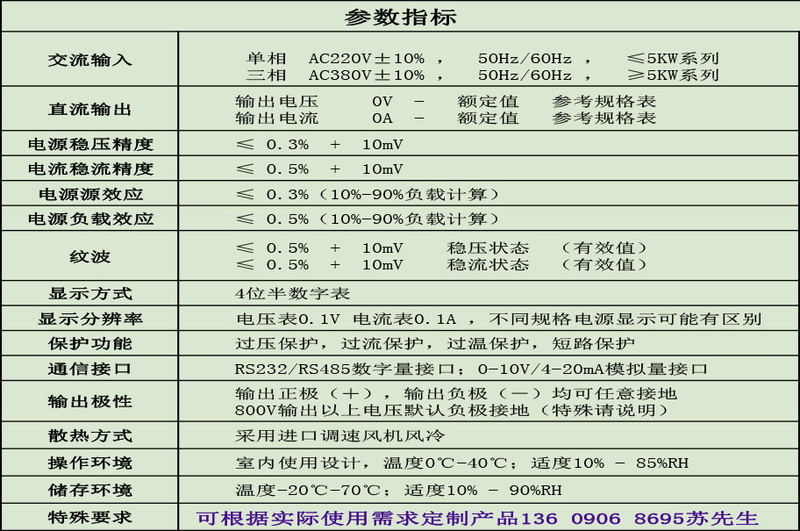

Performance features:

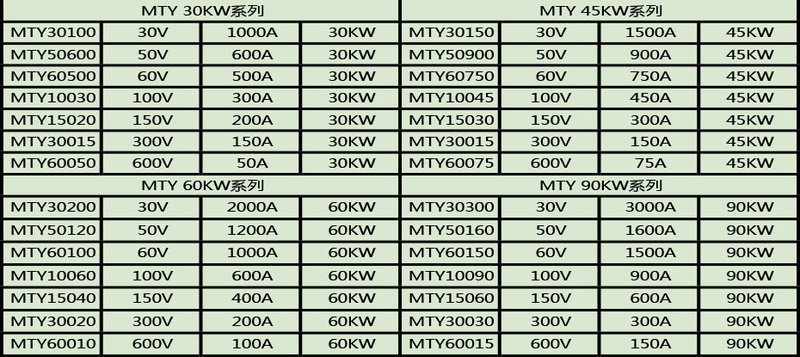

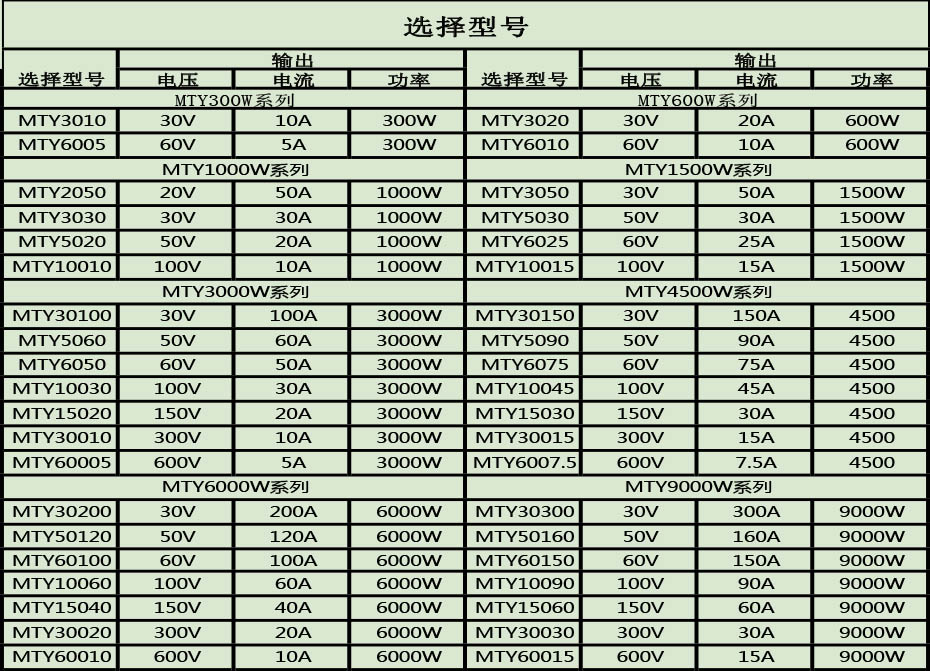

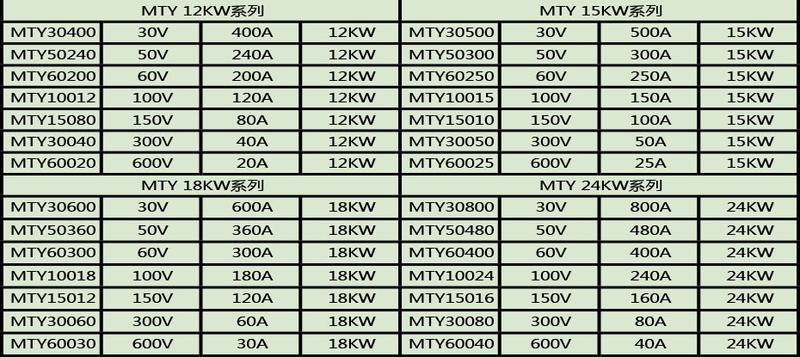

1.Specifications:Wide range output,output voltage 0-600V,current 0-3000A optional;

2.Adopt PWM modulation,high-gain amplifier circuit design,and the core components are imported components to ensure stable and reliable long-term full-load operation;

3.Small size,light weight,19-inch installation size,suitable for working table to use and rack-mounted installation (within 20KW can be mounted on the rack);

4.Voltage and current preset:The panel comes with preset buttons,which can preset the voltage and current values;

5.Complete protection functions:output over voltage ,over-current,over temperature shutdown output protection,short circuit protection etc can be set;

6.Intelligent:It can be connected with a PC to form an intelligent power supply for pc monitoring;

7.Communication interface:It has standard RS485,RS323 digital communication interface,0-10V/4-20mA analog signal interface ,and MOUDBUS-RTU standard commuincation protocol.

8.Special customization:Provide special specifications,sizes and parameter power supply design customization(Specify in advance before ordering in advance before ordering)

Application areas:

Laboratory,production line,charging room,aging room,motor testing and other places that require long-term stable DC Power Supply.
